1 GHz Digital Oscilloscope with 4 channels, 5 GSa/sec sampling, up to 120,000 waveforms per second, and dynamic persistence mode

Features

1. Industry-leading specification

  • Up to 1 GHz BW with 5 GSa/s sample rate
  • Standard 140 Mpts deep memory
  • Up to 180,000 waveforms per second capture rate
  • Up to 200,000 frames for waveform record and replay

2. Innovative UltraVision technology

  • Deeper Memory Depth(Std.140M pts)
  • Higher Waveform capture rate (Up to 180wfms/s)
  • Real Time waveform record & replay
  • Multi-level intensity grading display

3. Broad applications

  • A variety of Trigger functions and Automatic measurements with statistics
  • Serial bus trigger and decode such as I2C,SPI,RS232,CAN...
  • Advanced math function
  • Complete Connectivity
  • A variety of Probes and accessories

4. Attractive profile

  • Large display: 10.1 inch WVGA(800X480),LED backlight
  • Shallow depth: reduces the space occupied
  • Light weight, easy for hand
Loading Prices
Loading Callouts
Request a Quote
Loading Series Compare

Compare Products in this Series

Product Name Bandwidth Channels Sampling Rate Availability Price
DS6104
DS6104
1 GHz Digital Oscilloscope with 4 channels, 5 GSa/sec sampling, up to...
1 Ghz (1000 Mhz) 4 5 GS/S Availability
in stock!
Edu Price Standard Price Gov't Price
DS6064
DS6064
600 MHz Digital Oscilloscope with 4 channels, 5 GSa/sec sampling, up to...
600 Mhz 4 5 GS/S Availability
in stock!
Edu Price Standard Price Gov't Price
DS6102
DS6102
1 GHz Digital Oscilloscope with 2 channels, 5 GSa/sec sampling, up to...
1 Ghz (1000 Mhz) 2 5 GS/S Availability
in stock!
Edu Price Standard Price Gov't Price
DS6062
DS6062
600 MHz Digital Oscilloscope with 2 channels, 5 GSa/sec sampling, up to...
600 Mhz 2 5 GS/S Availability
in stock!
Edu Price Standard Price Gov't Price

Product Information

1 GHz 4 Channel Digital Oscilloscope



DS6104_Digital_Oscilloscopes_tn

Rigol DS6104 1 GHz 4-Channel Digital Oscilloscope

×
Features
  • 1GHz bandwidth, 4 channels
  • Maximum sample rate 5GSa/s
  • Vertical scale 2mV/div to 5V/div
  • Selectable 50Ω input impedance
  • Memory depth up to 140Mpts per channel
  • Innovative "UltraVision" technology
  • 180,000wfms/s waveform capture rate
  • Up to 200,000 frames real-time waveform record, replay & analysis functions
  • Automatic measurements with statistics


DS6000 Series Digital Oscilloscopes



The Rigol DS6104 digital oscilloscope has a 1GHz bandwidth and optional 1.5GHz bandwidth differential and single-ended active probes (model RP7150). These new products are designed and produced by Rigol with many key technological breakthroughs designed to help engineers achieve more thorough research, development and failure analysis applications. Detecting signal and device characteristics is now easier than ever with the most advanced digital oscilloscope platform in its class.

Rigol DS6000-series platforms are aimed at communications, semiconductor, computing, aerospace, defence, instrumentation, research/education, industrial electronics, consumer electronics and automotive industries. The Rigol DS6000 is the oscilloscope of choice for innovative technology teams with industry leading specifications, broad analysis capabilities and the most powerful trigger functions and display capabilities.


Rigol_DS6000_Attractive_Profile

Rigol DS6000 Digital Oscilloscope Attractive Profile

×

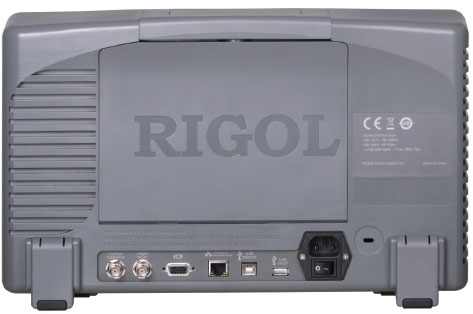

Rigol_DS6000_Rear_Panel

Rigol DS6000 Digital Oscilloscope Rear Panel

×


Product Dimensions: Width × Height × Depth = 399mm × 255.3mm × 123.8mm Weight: 5.35 kg


Rigol_DS6000_Ultra-Vision
Rigol_DS6000_Ultra-Vision_logo

  • Deeper Memory Depth(Std.140Mpts)
  • Higher Waveform capture rate (Up to 180,000 wfms/s)
  • Real Time waveform Record,Replay & Analysis (Up to 200,000 frames)
  • Multi-level intensity grading display


Features and Benefits



Rigol_DS6000_Capture_Rate_tn

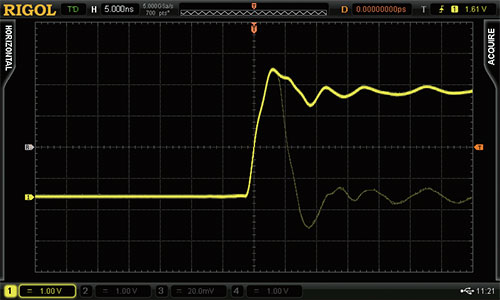

UltraVision: Up to 180K Waveforms/s Waveform capture rate

×
Up to 180K Waveforms/s Waveform capture rate

Rigol_DS6000_Record_Replay_tn

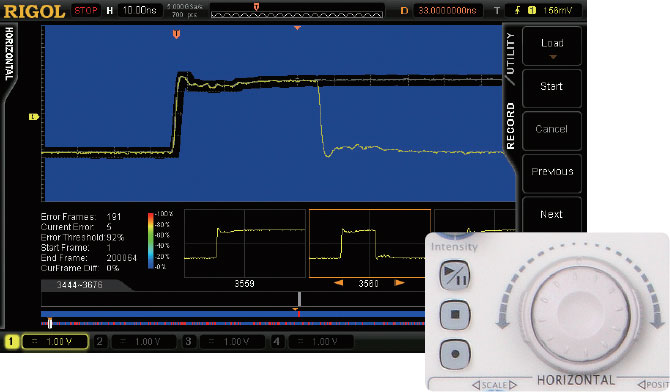

UltraVision: Real time waveform Record,Replay & Analysis

×
Real time waveform Record, Replay & Analysis

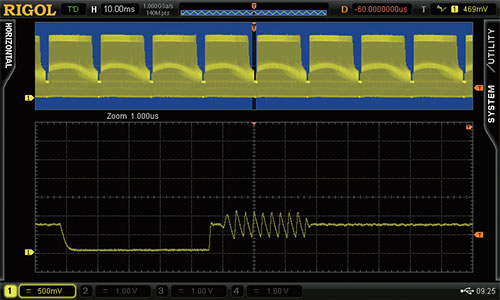

Rigol_DS6000_Grading_Display_tn

UltraVision: Multi-Level intensity grading display Standard Serial

×
Multi-Level intensity grading display

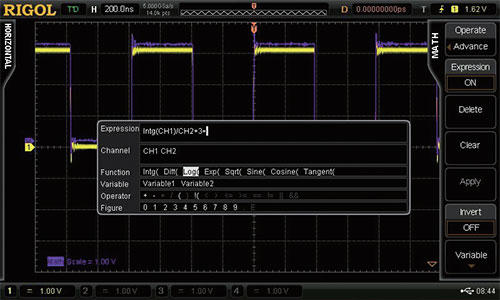

Rigol_DS6000_Math_Functions_tn

Advanced math function

×
Advanced math function

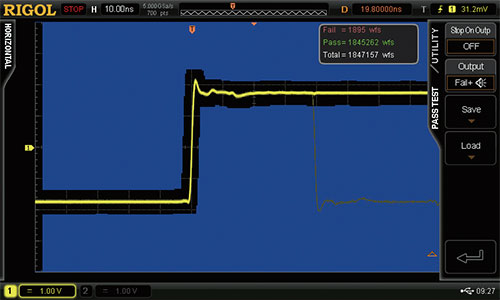

Rigol_DS6000_Mask_Test_Functions_tn

Standard Mask test function

×
Standard Mask test function

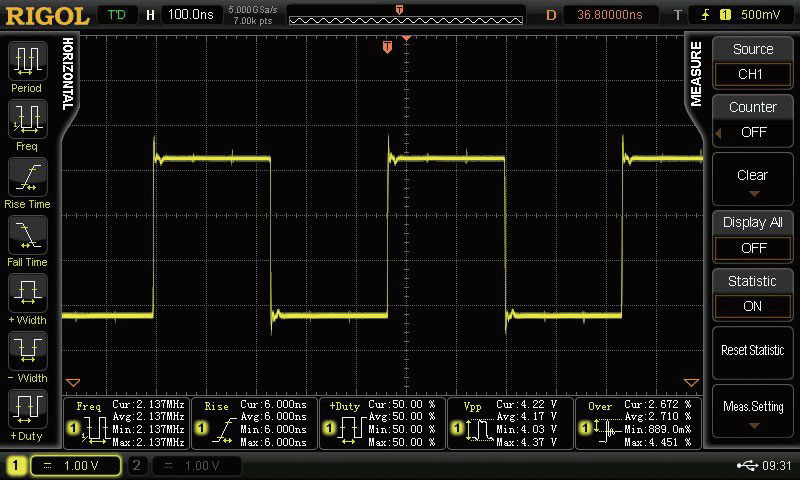

Rigol_DS6000_Auto_Measurements_tn

Auto measurements with statistics(Measure up to 5 parameters simultaneously)

×
Auto measurements with statistics

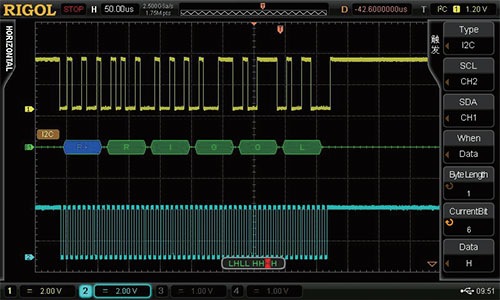

Rigol_DS6000_Serial_Bus_tn

Standard Serial Bus trigger functions

×
Standard Serial Bus trigger functions
(RS232,I2C,SPI,CAN etc.)

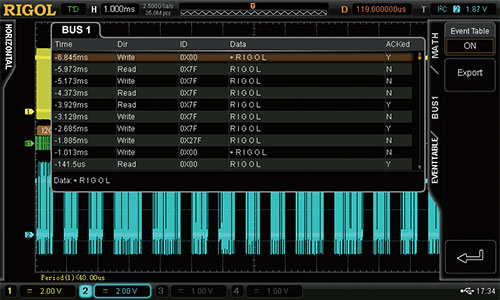

Rigol_DS6000_Optional-Serial_Bus_tn

Optional Serial bus decoding function with listing display

×
Optional Serial bus decoding function
with listing display



What's In The Box

  • Power Cord
  • Front Panel Cover FPC-DS-6
  • USB Data Cable CB-USB-150
  • 1 per Ch 600MHz Passive Probe RP5600
  • 1.5GHz Passive Probe, 2 for DS6104,1 for DS6102 RP6150
  • Quick Guide
  • Resource CD (User’s Guide and Application Software)

Specifications

Model DS6104 DS6102 DS6064 DS6062
Bandwidth 1 GHz 1 GHz 600 MHz 600 MHz
Analog Channels 4 2 4 2
Vertical Sensitivity 2 mV/div - 10V/div
Real-time Sample Rate 5 GSa/s(single channel mode),2.5 GSa/s(dual channel mode)
Memory Depth 140 Million Points
Waveform Acquisition Rate 180,000 Waveforms per Second
Standard Interface USB Host & Device, RS-232, P/F Out
Vertical Resolution 8 bits
Math +, -, ×, FFT, customizable user defined
Waveform Record 180,000 Waveforms
Cursor Measurements Manual, Track and Auto Measure modes
Probe Compensation Output
Output Voltage About 3 V, peak-peak
Frequency 2 1 kHz
Power
Power Voltage 100-120 V/45-440 Hz
100-240 V/45-65 Hz
Power Maximum 150W
Fuse 3 A, T Degree, 250 V
Environment
Temperature Range Operation: 0°Cto +50°C
Non-Operation: -20°C to +70°C
Cooling Method fan cooling
Humidity Range Under +35°C: °C90% Relative Humidity
+35°C to +50°C: ≤60% Relative Humidity
Altitude Operation: under 3,000 meters
Non-Operation: under 15,000 meters
Physical Characteristics
Size 3 Width×Height×Depth =
399.0 mm×255.3 mm×123.8 mm
Weight 4 Package Excluded :5.345 ± 0.2 kg
Package Included:10.8 ± 1 kg
Calibration Interval
The recommended calibration interval period is one year. Regulatory Information
Electromagnetic 2004/108/EC
Compatibility Execution standard EN 61326-1:2006 EN
61326-2-1:2006
Compatibility UL 61010-1:2004 ; CAN/CSA-C22.2 NO.
61010-1-2004 ;
EN 61010-1:2001 ; IEC 61010-1:2001

Rigol DS6104 Product Specifications Summary:
(for full specs please see the full specs tab or the data sheet)

Oscilloscopes/Digital Oscilloscopes Template

Bandwidth What's This?1 Ghz (1000 Mhz)
Channels4
Sampling Rate What's This?5 GS/S
Memory What's This?140 MB (143360 kB)
Rise Time What's This?400 ps (0.4 ns)
Screen Type (Oscilloscopes)TFT/LCD
Screen Size10.1 IN
Battery OptionsNo

Test Equipment General Attributes

Warranty3 YEARS
Calibration IncludedFactory Calibration
Power Supply Voltage120V/220V Universal
Safety ApprovalCE
Data Logging What's This?No
Interfaces I/O LAN / Ethernet, USB Host, USB, VGA or SVGA Out
Product Weight11.7 LBS
Product Height10 IN
Product Length15.7 IN
Product Width4.8 IN
Shipping Weight11.7 LBS
ECCN Number3A292
Country of OriginChina
Shipping Height15 IN
Shipping Length17 IN
Shipping Width21.7 IN
