Safety Testing Equipment Buying Guide






Instek GLC-9000 Leakage Current Tester

Instek GLC-9000

0 reviews
Instek GLC-9000 Leakage Current Tester

Features

  • Touch Panel with Color LCD Display
  • 9 Different Measurement Network to Simulate the Resistance of Human Body
  • 8 Different Types of Leakage current for Medical & General Electrical Equipment
  • Various Leakage Current Measuring Mode: DC/AC/AC+DC/AC Peak
  • Upper & Lower Limitation for PASS/FAIL Judgment
  • Meter Mode with SELV/CONV Function
  • 50 Preset Test Conditions Conform to IEC 60990; 30 Sets Memories for Customer Defined
  • Various Standard Interfaces:RS232/GPIB/USB Host & Device/EXT I/O
Loading Prices
List Price: $2,650.00
Sale: $2,251.95
  + Free shipping over $99

Marketing-Promo-Add-to-Cart-176x92-3-items

Loading Callouts
Request a Quote
Loading Series Compare

Product Information

GLC-9000 Leakage Current Tester


INstek_GLC9000-pop-tn

GW Instek GLC-9000 Leakage Current Tester

×
The GLC-9000 complies with IEC, UL and other
international electrical safety standards requiring
leakage current measurement.
Leakage current tests can be separated into 3 basic types:
  • Earth Leakage current
  • Enclosure Leakage current
  • Patient Leakage current


Leakage Current Tester: Testing is Just a Fingertip Away



The GLC-9000, leakage current tester, is used to perform leakage current (or called touch current) tests on medical electrical (IEC 60601-1) and general purpose electric & electronic (IEC 60990) equipment. This tester engages with nine measurement networks (or called Measuring Device) to provide the simulation of human body while the EUT (equipment under test) is taking a leakage current testing in compliance with the specific standards or regulations such as IEC, UL, JIS...etc.



In order to provide a simple operation environment, the GLC-9000 equips with large TFT LCD touch panel to configure system as well as to present the measurement settings information and result simultaneously. Besides, there are 50 preset testing conditions, which conform to IEC60990 and other standards, for general electric equipment can be recalled to reduce the setting time. In addition, 30 sets empty memory are available for user defined setting.


A Meter mode is also available for the GLC-9000, it uses the measurement terminal (T1/T2) to measure voltage as the same way of ordinary voltmeter. During the voltage measurement, the SELV function (safety extra low voltage) is applicable to detect whether the voltage value between measuring points exceed the SELV setting.



Simple and Intuitive System


The color TFT touch screen makes operation intuitive and simple and also makes it easier to observe test result.
Various Measurement Network


Nine Measurement Network are available for measuring the leakage current of electrical and medical equipment.

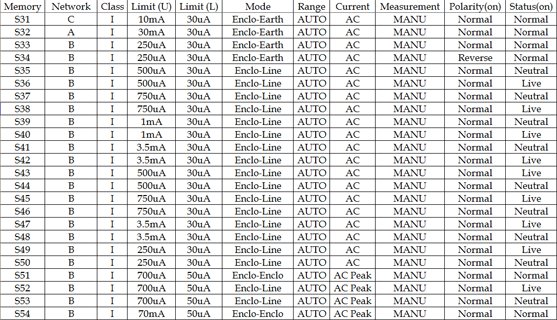

Preset Test Conditions

Instek_GLC9000_Preset-Test-Conditions
×

Preset Test Conditions


50 preset test conditions conforming to IEC 60990 for general electric equipment. Additional 30 sets empty memory for user defined setting.
Various Standard Interfaces




The various practical interfaces are equipped as standard accessory, making control convenient and flexible.




Measurement Network (MD)

Instek_GLC9000_Measurement-Network_-MD
×

Measurement Network (MD)

  1. Note:The standard number is only listed as example
  2. Note:The networks listed can be used with all applicable standards

What's In The Box

  • User manual x1
  • Power cord x2
  • Test lead (GTL-117) x2
  • Alligator clips x4(Red x2 / black x2)
  • Foil probe x1

Specifications

GLC-9000 Leakage Current Tester
General Display 320 x 240 Color TFT LCD
Operation Touch panel
Measurement Device 9 kinds
DC Ranges 50uA/500uA/5mA/25mA
Resolutions 0.01uA/0.1uA/1uA/10uA
Accuracy ±1.0% fs/±(0.2% rdg+3dgt)
AC/AC+DC Ranges 50uA/500uA/5mA/25mA
Resolutions 0.01uA/0.1uA/1uA/10uA
Accuracy ±2.0% fs/±(2.0% rdg+6dgt) -- 10Hz < f = 100kHz
±2.0% fs/±(2.0% rdg+10dgt) -- 10Hz < f = 100kHz
AC peak Ranges 500uA/1mA/10mA/75mA
Resolutions 0.1uA/1uA/10uA/100uA
Accuracy ±4.0% fs/±2.5%fs/±(2.0% rdg+6dgt) -- 20Hz < f = 1kHz
±5.0% fs/±5.0%fs/±(5.0% rdg+10dgt) -- 1kHz < f = 10kHz
Meter Mode AC/DC/AC+DC 10.0~300.0V
AC Peak 15.0~430.0V
SELV function Available
Memory Empty sets 30 sets
Preset sets 50 sets (conform to IEC 60990)
Interfaces Front panel USB host
Rear Panel RS-232C/GPIB/EXT I/O/USB device
Memory For GLC-9000 AC 100V/120V/220V/230V±10%, 50/60Hz
AC 85V~250, 50/60Hz
For EUT 50 sets (conform to IEC 60990)

Instek GLC-9000 Product Specifications Summary:
(for full specs please see the full specs tab or the data sheet)

Safety Testing / Surge Testing/Leakage Current Testers Template

Test Method (Safety) What's This?IEC 60601-1, IEC 60990
Maximum Current AC What's This?75 mA (0.075 A)
Maximum Current DC25 A
Minimum Current AC50 uA (0.05 mA)
Minimum Current DC50 uA (0.05 mA)
AccuracyDC A: ±1.0% FS/±(0.2% rdg+3dgt)
AC: ±2.0% FS/±(2.0% rdg+10dgt) -- 10Hz < f = 100kHz

Safety Testing / Surge Testing/Hipot Tester Template

Test Type Hipot What's This?AC, DC
Max Trip Current DC Test What's This?25 mA
Min Trip Current DC Test What's This?50 uA (0.05 mA)
Programmable (hipot) What's This?Yes
Arc Detection What's This?No
Scanning control capable for Multipoint TestingNo

Test Equipment General Attributes

Warranty3 YEARS
Calibration IncludedFactory Calibration
Power Supply Voltage120V 50/60 Hz, 120V/220V Universal, 220V Only
Interfaces I/O GPIB, RS-232
Product Weight5 KILOS (11.02 LBS)
Product Height150 IN
Product Length350 IN
Product Width330 IN
Country of OriginChina
