Is it time to change your test leads?






Fluke 050-CLKT C-Range Infrared Window Kwik Twist

Fluke 050-CLKT
Catalog #: 3460346

0 reviews
2 IN (50MM) C-RANGE IR WINDOW, KWIK TWIST
Free Gift From Fluke With Purchase

Features

  • 2 Inches (50 Millimeter) C-Range IR Window, Kwik Twist
  • Engineered and tested to withstand electric-arcs up to 50 kA for30 cycles.
  • Certified by UL & CSA for Type 3/12 (Outdoor) environments in North America and Canada, the C-Range windows are tested to withstand the long term aging effects of UV exposure.
  • Certified by SIRA Certification IP65 (Outdoor) environments in Europe.
  • The CLIRVU coating – exclusive to Hawk IR Windows - seals  the optic prior to assembly to protect against moisture degradation.
  • The Quadraband optic is IR-Fusion compatible allowing the thermographer to see potential problems both ways.
  • Each C-Range window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs.
Loading Prices
List Price: $199.99
Sale: $162.15
  + Free shipping over $99

Loading Callouts
Request a Quote
Loading Series Compare

Compare Products in this Series

Product Name Nominal Diameter Viewing Apeture Diameter Viewing Aperture Area Availability Price
050-CLKT
050-CLKT
2 IN (50MM) C-RANGE IR WINDOW, KWIK TWIST
4 IN 3.5 IN 9.79 in² Availability
in stock!
Edu Price Standard Price Gov't Price
075-CLKT
075-CLKT
3 IN (75MM) C-RANGE IR WINDOW, KWIK TWIST
3 IN 2.7 IN 5.63 in² Availability
in stock!
Edu Price Standard Price Gov't Price
100-CLKT
100-CLKT
4 IN (100MM) C-RANGE IR WINDOW, KWIK TWIST
2 IN 1.7 IN 2.25 in² Availability
in stock!
Edu Price Standard Price Gov't Price

Product Information

Fluke 050-CLKT 2 Inches (50 Millimeter) C-Range IR Window, KWIK TWIST

If you are concerned about Arc-Flash but wish to continue with your infrared thermography program infrared windows are the answer. These Arc-Resistant, outdoor certified, infrared windows allow thermal, ultraviolet, visual and fusion technologies to be used without exposing personnel to live equipment.

All infrared windows from Hawk IR International use the unique Quadraband™ multispectral optic, allowing inspection with any camera for total flexibility both now and in the future.

Why is available area important?
Understanding the difference between “Optic Diameter” and “Available Area” gives the thermographer a measure of how much infrared energy is passing through the window. The more energy, the better the reading. Using a crystal IR Window means that the entire area is available for infrared transmission for optimum repeatability and results. While a mesh grid may have a larger “Optic Diameter” the grid itself blocks the IR signal, meaning that the amount of radiation available to the camera is significantly reduced and the signal may be irregular. It is a generally accepted fact that due to interference by mesh grids, transmission correction and hence measurement is not possible,

Detailed Specifications
  050-CL / 050-CLKT 075-CL / 075-CLKT 100-CL / 100-CLKT
Optic Data
Crystal Insert Diameter 50 mm (1.97 in) 75 mm (2.96 in) 100 mm (3.94 in)
Viewing Aperture Diameter 43 mm (1.7 in) 68 mm (2.7 in) 89 mm (3.5 in)
Viewing Aperture Area 1452 mm 2 (2.25 sq in) 3632 mm 2 (5.63 sq in) 6322 mm 2 (9.79 sq in)
Thickness 2 mm (0.08 in) 2 mm (0.08 in) 4 mm (0.16 in)
CLIRVU Coating Yes
Shortwave IR Capable Yes
Midwave IR Capable Yes
Longwave IR Capable Yes
Ultraviolet (UV) Capable Yes
Visual Capable Yes
Fusion Capable Yes

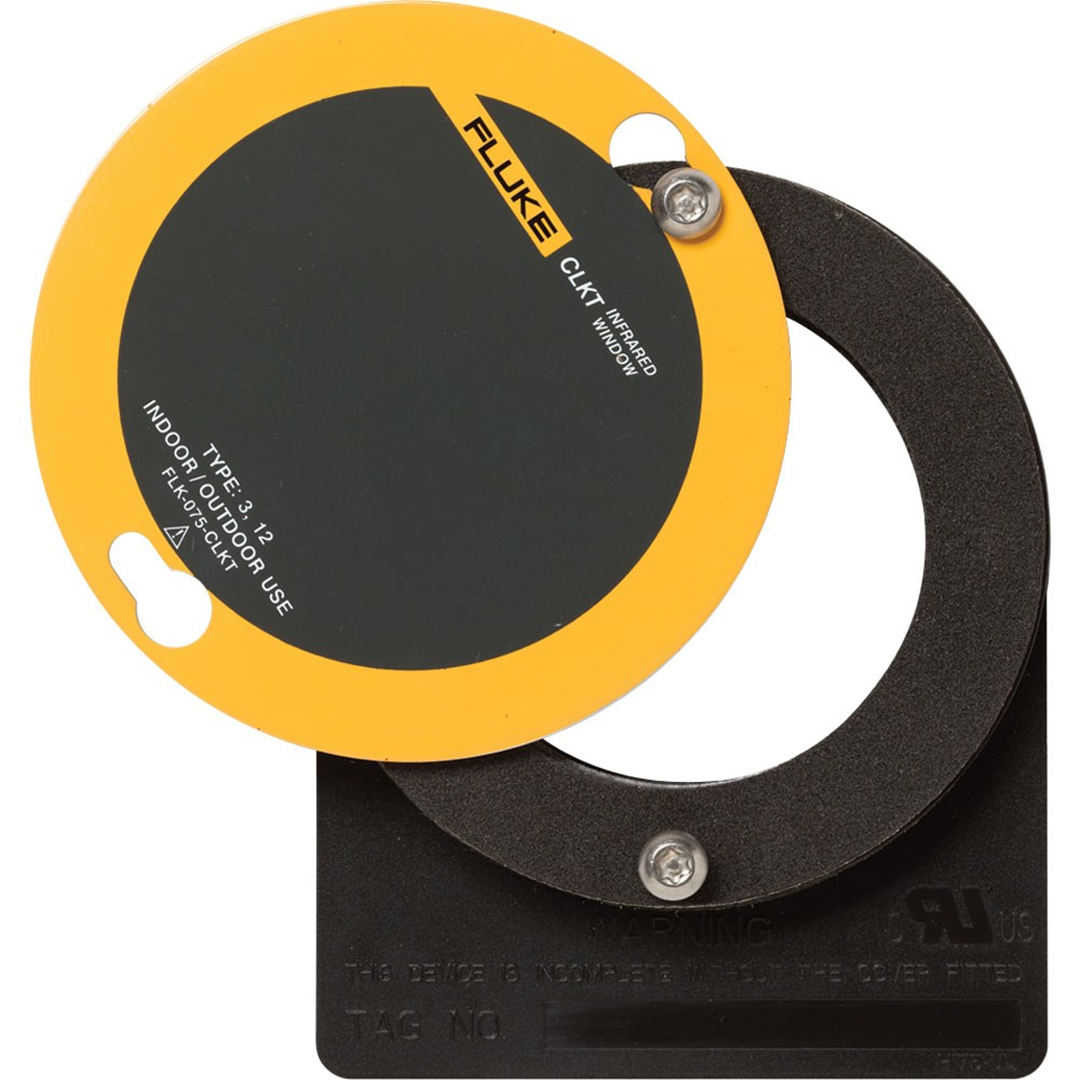

With a Kwik Twist cover that magnetically sticks to the panel when removed, Fluke IR Windows are easy to use and deliver unmatched image clarity through a CLIRVU® crystal. Exclusive to Fluke IR Windows, CLIRVU crystal technology is impervious to both moisture and vibration. CLIRVU crystals are designed to withstand the extreme pressures and temperatures of an arc-fault event, and offer protection from molten projectiles associated with arc-flashes.

What's In The Box

  • Installation CD
  • Self-adhesive Drilling Template
  • Security Access Key
  • Warranty Statement

Specifications

Optic data
  3460346 FLK-050-CLKT 3460387 FLK-075-CLKT 3460439 FLK-100-CLKT
Crystal insert diameter 50 mm (1.97 in) 75 mm (2.96 in) 100 mm (3.94 in)
Viewing aperture diameter 43 mm (1.7 in) 68 mm (2.7 in) 89 mm (3.5 in)
Viewing aperture area 1452 mm2 (2.25 sq in) 3632 mm2 (5.63 sq in) 6322 mm2 (9.79 sq in)
Thickness 2 mm (0.08 in) 2 mm (0.08 in) 4 mm (0.16 in)
CLIRVU coating Yes Yes Yes
Shortwave IR capable Yes Yes Yes
Midwave IR capable Yes Yes Yes
Longwave IR capable Yes Yes Yes
Ultraviolet (UV) capable Yes Yes Yes
Visual capable Yes Yes Yes
Fusion capable Yes Yes Yes
Underwriters Laboratories (UL) recognized Yes Yes Yes
UL50 environmental Type 3/12
UL746C N/A (Polymer Free)
UL94 N/A (Polymer Free)
Canadian Standards Association (CSA) approval Yes
Environmental Type 3/12
KEMA (Arc-Testing)
ANSI C37.20.7 50 kA for 30 cycles @60 Hz
EEMACS 14-1 Type-B 40 kA for 30 cycles @60 Hz
ASTA (Arc-Testing)
IEC 62271 20 kA for 5 cycles @50 Hz
TUV
Cyclic humidity withstand Yes
Vibration withstand Yes
NEMKO
Resistance of insulating materials to 100° Yes
Resistance of insulating material to ball pressure (Brinell) Yes
Glow-wire test 650 °C Yes
Lloyds Register
Up to 11 kV marine switchgear, indoor or outdoor (offshore only) Yes
General Specifications
Maximum temperature Gaskets: 250 °C (482 °F)
Body: 659 °C (1219°F)
Optic: 1400 °C (2552 °F)
Gaskets Low smoke and fume (LSF) compliant silicone
IP rating IP65
NEMA rating Type 3/12 (UL and CSA Third Party Certified)
Vibration rating IEC60068-2-6
Humidity rating IEC60068-2-3
Pull-out strength Up to 630 kg (1388 lb)
Warranty Lifetime replacement against manufacturing defects

Fluke 050-CLKT Product Specifications Summary:
(for full specs please see the full specs tab or the data sheet)

Thermal Imagers/IR Windows for Thermal Imagers Template

Nominal Diameter4 IN
Viewing Apeture Diameter3.5 IN
Viewing Aperture Area9.79 in²
Thickness4 MM
Install with Greenlee Punch What's This?No
Security Key Door Latch What's This?Yes

Test Equipment General Attributes

Unique FeaturesEach CLKT infrared window is engineered and tested to withstand electric-arcs up to 50 kA for 30 cycles.

The ClirVu® coating - exclusive to Fluke infrared windows - seals the optic prior to assembly to protect against moisture degradation making it perfect for very hot and very cold outdoor environments.

Each Fluke infrared window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs.

CLKT infrared windows come complete with a security access key, installation instructions and self-adhesive drilling template
Warranty DetailsLifetime replacement against manufacturing defects
Safety ApprovalCSA, UL
IP Rating What's This?IP65
Product Weight1.14 LBS
Product Height5.51 IN
Product Length12.6 IN
Product Width10.63 IN
Shipping Weight1.25 LBS
ECCN NumberEAR99
HTS/Schedule B Number700729000
Country of OriginChina
Shipping Height5.51 IN
Shipping Length12.6 IN
Shipping Width10.63 IN
UPC095969495813
