BK 490B CRT ANALYZER / REJUVENATOR B&K Precision 490B

BK 490B CRT ANALYZER / REJUVENATOR

Search:

BK 490B CRT ANALYZER / REJUVENATOR

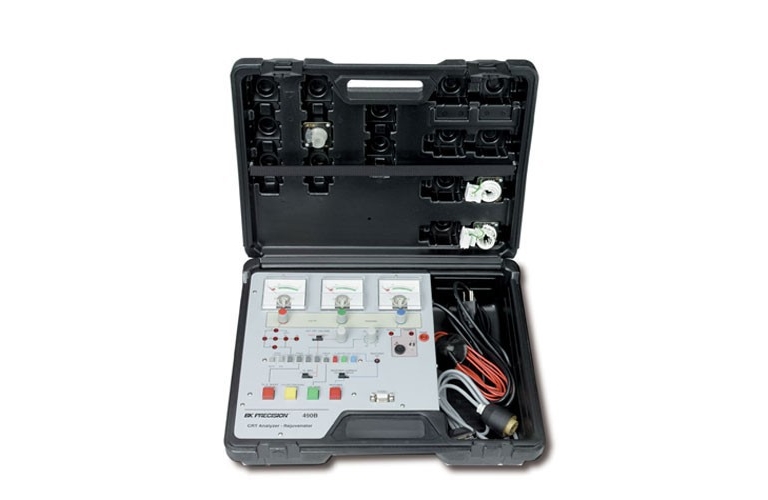

Click image to enlarge

BK 490B

Datasheet

Manual

Features:

Test and restore color or monochrome CRTs
Test and restore most computer monitor CRTs
Test and restore most projection TV CRTs
Test emission, tracking, leakage, shorts, life
Remove shorts, clean and balance guns, rejuvenate cathodes
Continual set up chart updates and new adapter development
Extra rugged carrying case

Description

The 490B is intended for the checking and rejuvenating of the cathode ray tubes (CRT) for both color and black and white television sets and monitors. With this instrument you will be able to find and repair leakage or shorts by measuring the RGB current of cathodes. You will also be able to plot voltage/current features and to rejuvenate each cathode separately.

Models, Options, & Accessories

Model

Description

List Price

Sale Price

490B

C.R.T. Analyzer/Rejuvenator - Discontinued - no replacement

Model

Accessories

List Price

Sale Price

CC 12

DB 9 to Molex Cable

$49.00

497-022-0-599

467/470/480/490/490B CRT Setup Chart

$30.00

CR 20

CR20 DELTA GUN CRT ADAPTER

$40.00

CR 23

CR23 INLINE GUN CRT ADAPTER - Discontinued - replaced by BK CR XA

CR 24

CR24 INLINE GUN CRT ADAPTER - Discontinued - no replacement

CR 26

CR26 HITACHI PROJECTION ADAPT. - Discontinued - no replacement

CR 34

CR34 COLOR PROJECTION ADAPTER - Discontinued - no replacement

CR 35

CR35 HIGH RES. MONO. ADAPTER

$40.00

CR 38

CR38 PROJECTION CRT ADAPTER - Discontinued - no replacement

CR 43

CR43 ADAPTER

$42.00

CR 70

CR 70 COLOR CRT ADAPTER

$42.00

CR 71

CR 71 COLOR CRT ADAPTER - Discontinued - no replacement

CR XA

Universal Adapter

$79.00

Specifications

Heater
Selectable voltages	6.3V 1A max. 12V 0.5A max
Cut-Off adjustment
G1 bias	-50V and -70V selectable
G2 bias	+30V to +600V, variable
Emission test
Measurement range	0 to 1600 uA
G1 bias	Cut-off bias
Color tubes	R, G or B simultaneous measuring
Rejuvenation
Current	25 or 50 mA, selectable
Cycle duration	70s approx
Start cycle	Manually
Color tubes	R, G or B selection
Leakage and short circuit
Indicators	Neon
Removing	Between G1-K and Fil-K
Balance test
Balance adjustment	For the three cathodes
Life test	Approximate life period rating
Emission curve
Measurement	Of 1k current
G1 bias	Variable from 0 up to -100V
Power supply
Input voltage	AC 110V 50-60 Hz 125V/220V/240V (internally selectable)
Power Consumption	35W
Mechanical features	Rugged carrying case with 16 adapter storage
Dimensions WxHxD	17.7x13.4x5.7\'\' (420x340x145 mm)
Weight	10.71 lbs. (4.9 kg)
Warranty	One Year
Accessories
SUPPLIED	Instruction manual, Set-up chart, Spare fuse, 3 Adapter sockets for several CRT, Adapter cable, High voltage anode cable
Adapter	JEDEC base
CA23	B10-276
CA24	B8-274
CC-12*	Conversion cable
